Brand: RayXagon

Terms and Conditions
Generally ​Ships the Same/Next Business Day

AFFORDABLE BINOS

RayXagon was founded to make night vision care-free & more affordable to everyone.

MODERN FEATURES

Provided with all specs & features required for a modular & modern setup.

ULTRALIGHT

The UNVM is amongst the lightest monocular with a full weight of maximum 285 g.

RUGGED

IP66 rated to be dust-tight & waterproof against water jets, and made to withstand demanding conditions.

DESCRIPTION

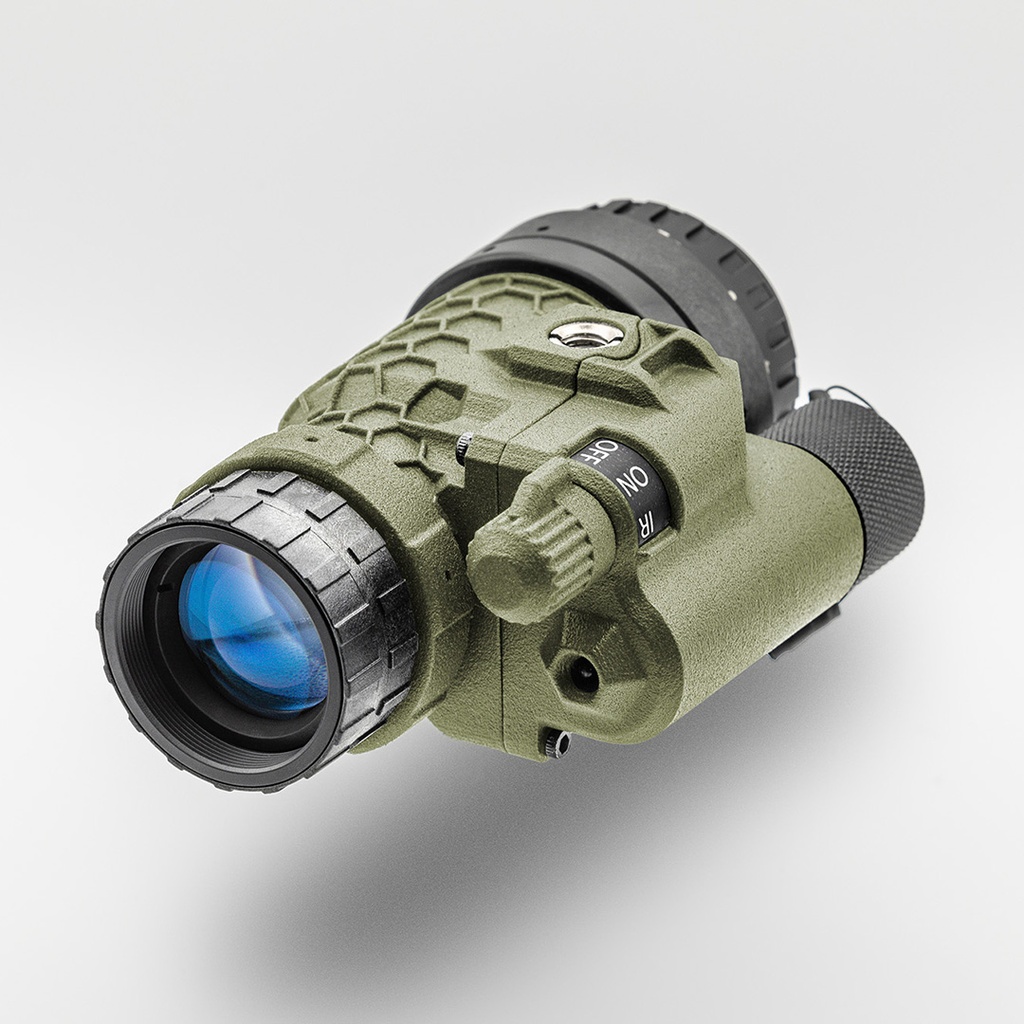

The RayXagon Ultralight Night Vision Monocular (UNVM) is an extremely lightweight and compact night vision monocular that can be used on a helmet, on a weapon or by hand.


Offered with an extensive range of image intensifier tubes. These tubes are available in white or green phosphor. RayXagon works with Photonis, Elbit or North Night Vision Technology (NNVT) brand tubes.


Available in a STARTER, PRO & EXPERT version to allow night vision capabilities for any type of budget.


Optionally, a Dovetail Mount from Cadex Defence with a J-Arm from RayXagon can be provided as a helmet mounting solution. The universal Low Profile Flip-up Dovetail Mount is known as the best and most reliable mounting solution on the market (that is also ITAR-free). The J-Arm from RayXagon offers a solid connection between the UNVM and the Dovetail Mount.

PRODUCT FEATURES

BUILT-IN IR ILLUMINATOR

The UNVB features a built-in infrared illuminator that provides a wavelength of 850nm. Making it compatible with most image intensifier tubes which ensures perfect vision in all situations.

MODULAR POWER

Running for 40 hours on a single AA battery, it can also run on rechargeable 14500 batteries. Additionally, the UNVB has a connector for an external power supply. This allows a significant increase in autonomy for long-duration use.

ERGONOMIC SWITCH

The device is equipped with a robust and ergonomic 3-position switch (OFF, ON, IR) for easy use, even with gloves.

PVS-14 INTERFACE

The UNVM features a standard 1/4″ mounting interface (PVS-14 type), which allows perfect compatibility with various J-Arm type mounting solutions on the market. This to mount it on a helmet, firearm or even a tripod.

NON-SLIP COATING

It's registered honeycomb patterned outer surface ensures perfect grip, even with gloves or wet hands.


PERFORMANCE

  • Field of view: 40°
  • Magnification: 1x
  • Focus range: 20 cm to infinity
  • Diopter adjustment: -6 to +3
  • Operating temperature: -35 to 50°C
  • IP66 rated
  • "IR-ON" & "LOW BATTERY" indicator
  • 285 g (with batteries)
  • Automatic brightness gain
  • 1/4inch thread compatible with J-Arm
  • Cerakote NiR paint treated with low IR signature



OPTIONAL CADEX DEFENCE DOVETAIL MOUNT W/ RAYXAGON J-ARM

  • Ergonomic “one touch” height adjustment
  • Low profile design follows helmet contour when folded
  • 6 positions adjustable mounting plate fits numerous facial profiles & helmet mounting systems
  • Locked in a stowed position
  • Force overcome in down/deployed position
  • If the NVG is bumped or impacted, the mount will fold & lock in an upright position protecting the NVG & user

VERSION DIFFERENCES

STARTER

  • Generation 2+ tubes, 1400 - 1600 FOM
  • Commercial range optics

PRO

  • Generation 2+ tubes, 1600 - 1800 FOM
  • Autogating
  • Milspec Optics (Carson or Qioptic)

EXPERT

  • PHOTONIS ECHO tubes, Generation 2+, 1800 - 1990 FOM
  • Autogating
  • Milspec Optics (Carson or Qioptic)

MORE DETAILS

  • Made in France
  • *NOTE: A dovetail style NVG mount with a J-arm are required in order to use the UNVM with a helmet.

IN THE BOX

  • 1x UNVM
  • 1x Velvet protection bag
  • 1x Sticker & patch
  • 1x Manual
