NEW WIRED DESIGN
The ComTac VIII is PELTOR™'s 1st wired version after the release of their TMAS lineup.
"TMAS"
Discover an entirely new way of comm modularity with the "Tactical Modular Audio System".
NEW FEATURES
PELTOR™'s next-gen design comes with a bunch of improvements & a whole array of new features.
RUGGED
Designed for military applications. IP68 waterproof & dust-proof. Operational in -40 to 55°C.
DESCRIPTION

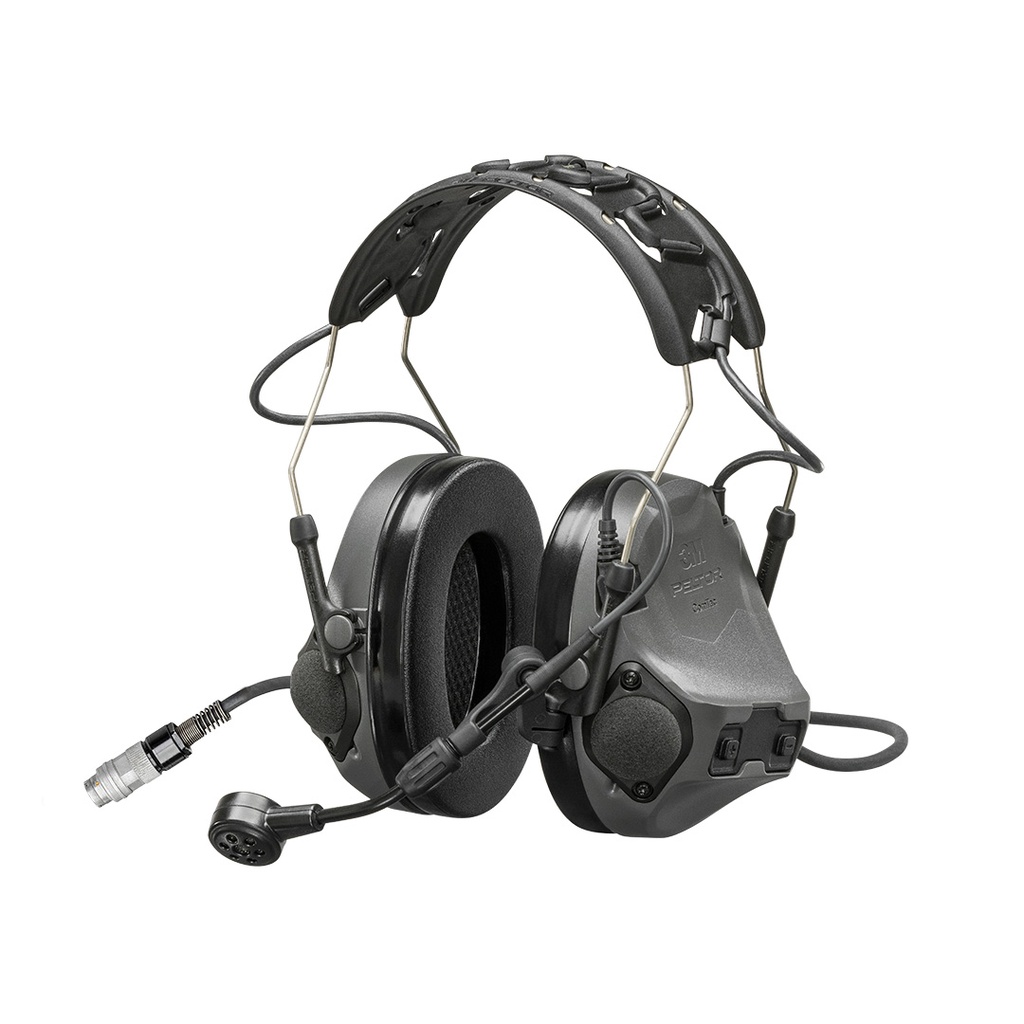

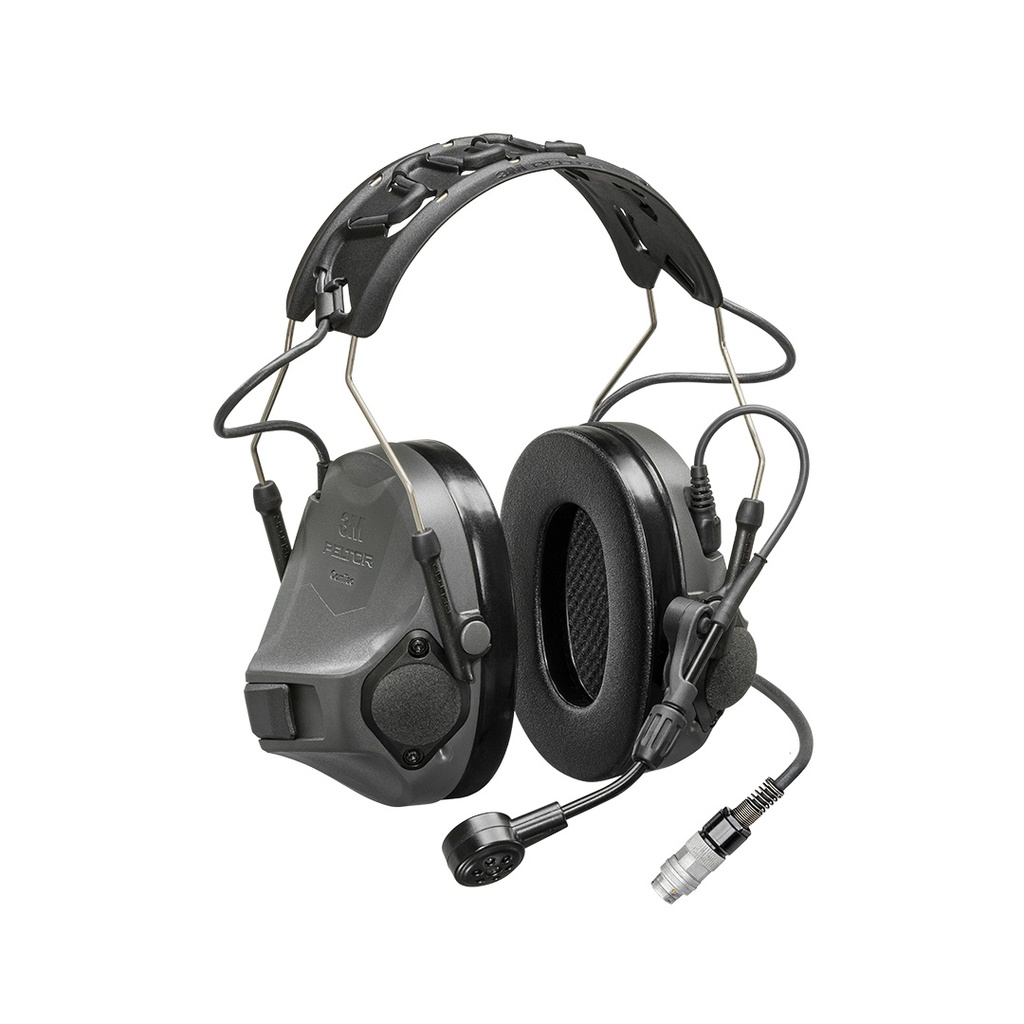

After the success of the wireless ComTac™ VII with its entirely new TMAS system, a cheaper and wired version is now also available known as the ComTac VIII which serves as a replacement for the ComTac XPI (or V in the USA).
Still based around a new system called TMAS (Tactical Modular Audio System), the system offers flexibility and scalability to address the needs of the modern soldier, with the ability to manage legacy and future radio systems. This version is made to be compatible with the SCU-300 and has a dual-comm SCU 10-pin.
PRODUCT FEATURES

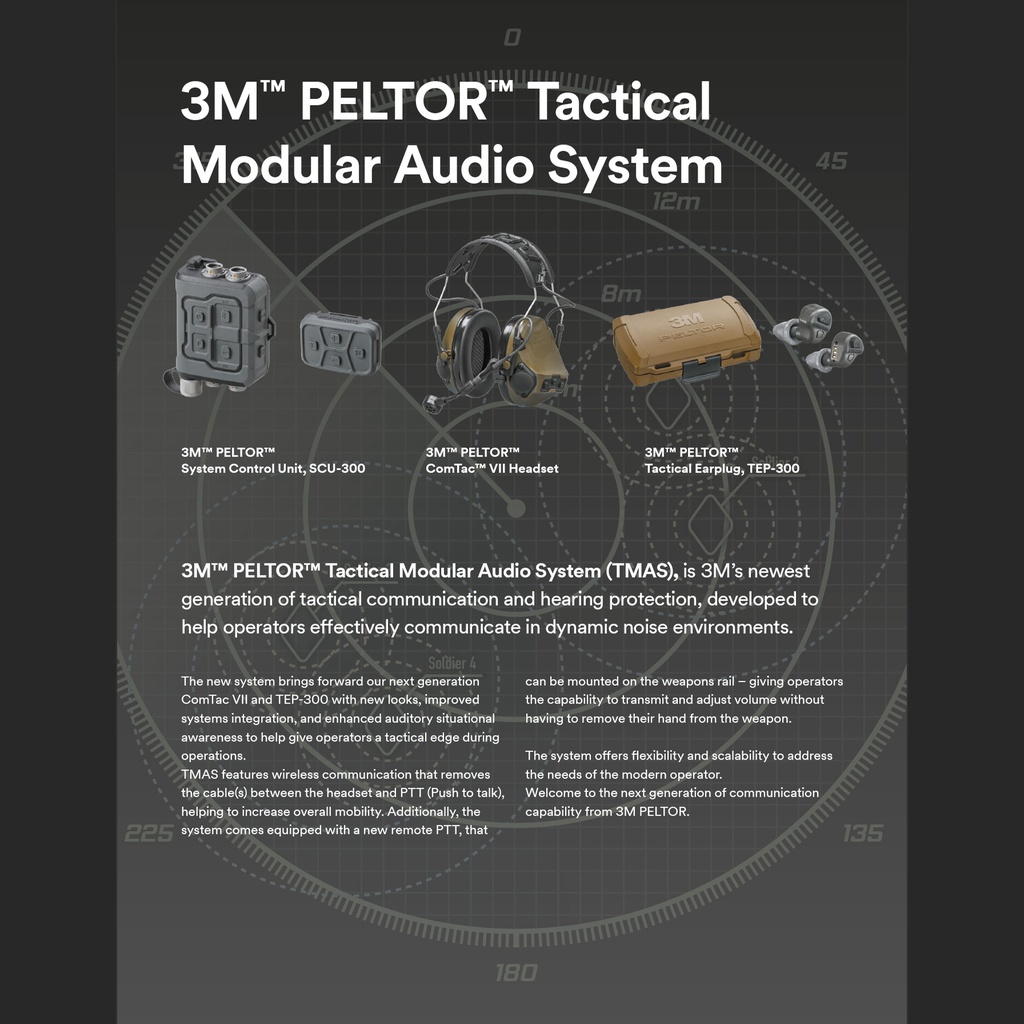

TACTICAL MODULAR AUDIO SYSTEM (TMAS)

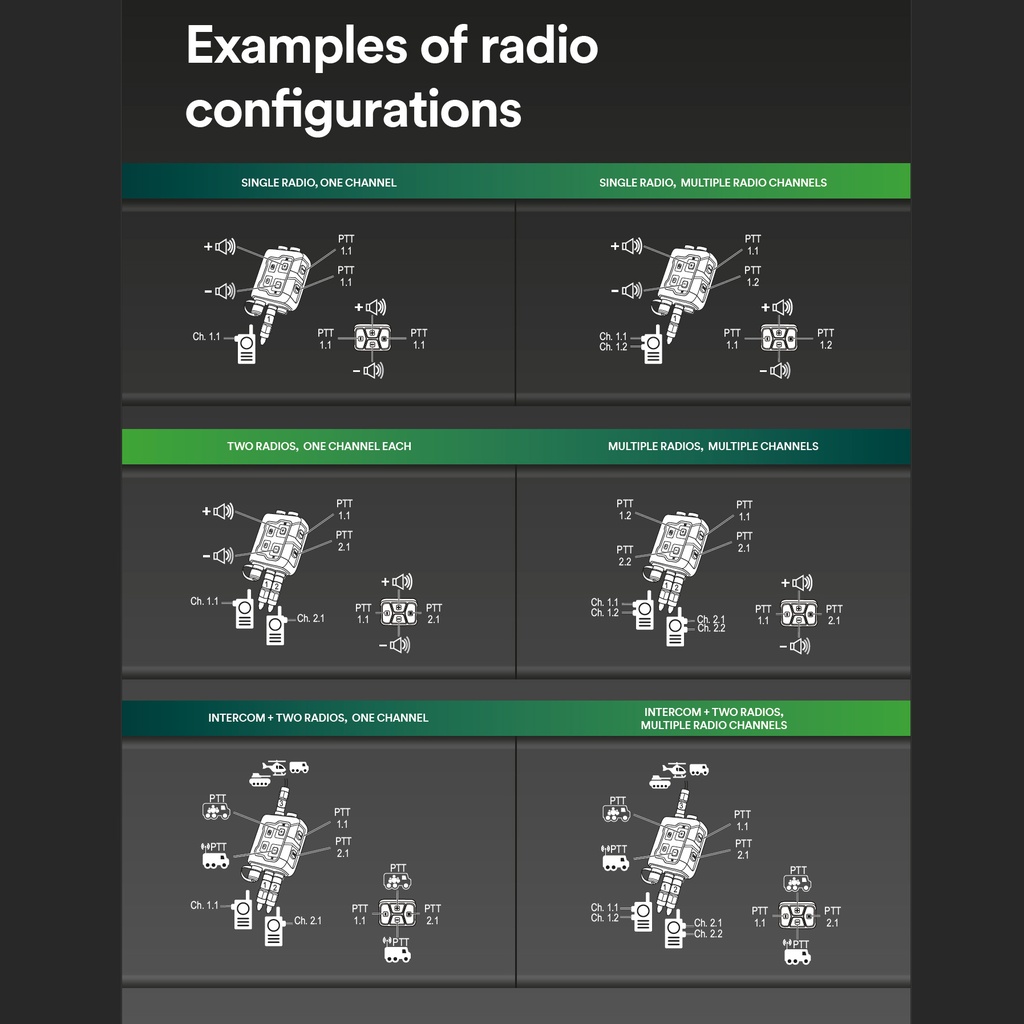

An entire new approach to tactical communications. TMAS offers incredible flexibility & scalability to the user's needs. It provides the ability to manage up to two radios, vehicle intercom, mobile connection and multiple channels all at once. This with both legacy and future radio systems.
SOUNDSCAPE
Helps to promote speach intelligibility in noise. It enables automatic changes to product settings depending on the user environment. When on, the following functions are activated:
- Increased radio volume in high continuous noise
- increased voive prompt in high continuous noise
- Reduced radio static/hiss between transmissions

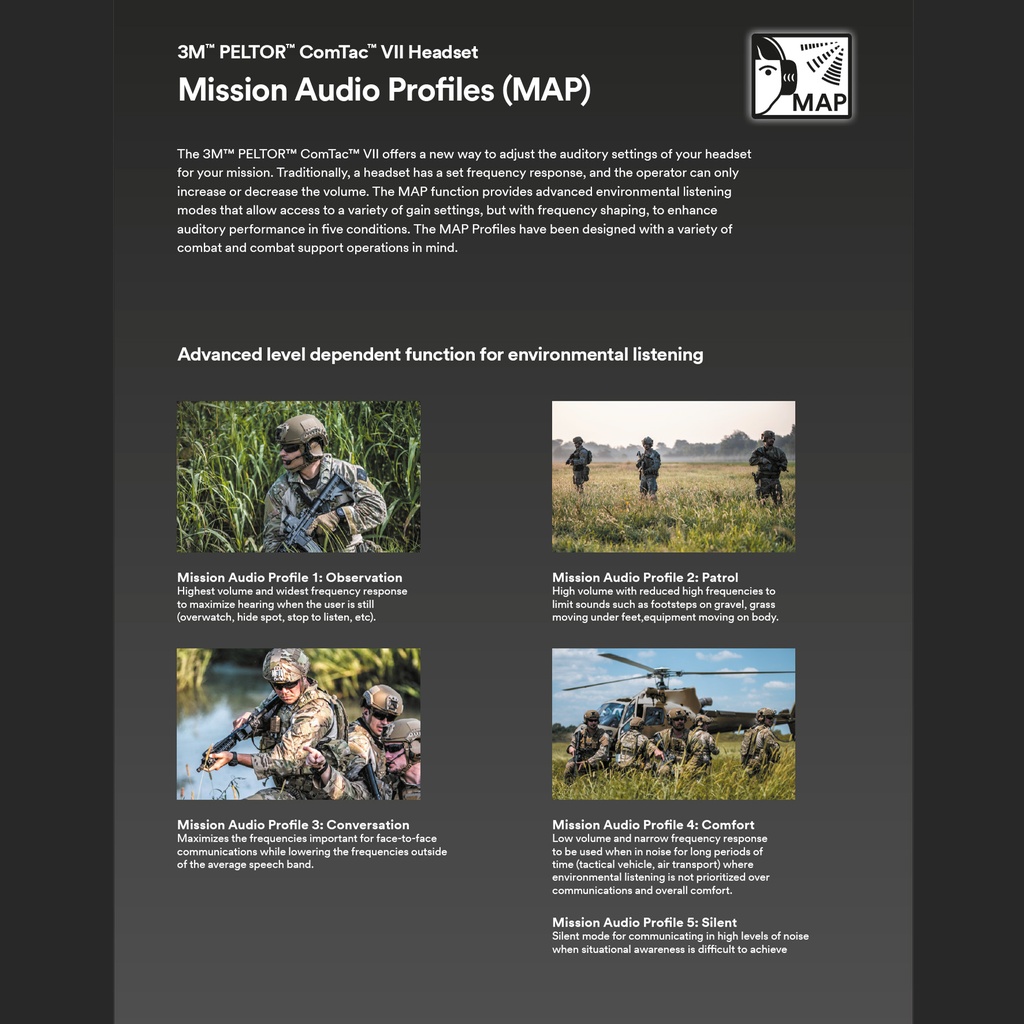

MISSION AUDIO PROFILES (MAP)
MAPs provide advanced settings for ambient listening (besides the classic volume adjustment system). This allows you to adapt & optimize the environmental listening function to different scenarios.
IMPROVED AUDITORY SITUATIONAL AWARENESS (ASA)
An upgraded environmental microphone and a more robust windscreen create a more improved Auditory Situational Awareness (ASA) and reduced wind noise. Sounds and their localization feel more natural than ever before.
AMBIDEXTROUS
A redesigned, higher-placed microphone attachment accommodates for both left-and right-handed shooters. This without the need to relocate the microphone to the opposite side. Microphone can still be detached if required.
REMOTE CONTROL UNIT (RCU)
The RCU-300 (separately available with the SCU-300) provides a new way to communicate & adjust your comm system without the need to take your hands off your rifle.
HEADSET
- Wired active hearing protection with capabilities to SCU-300 through an adapter

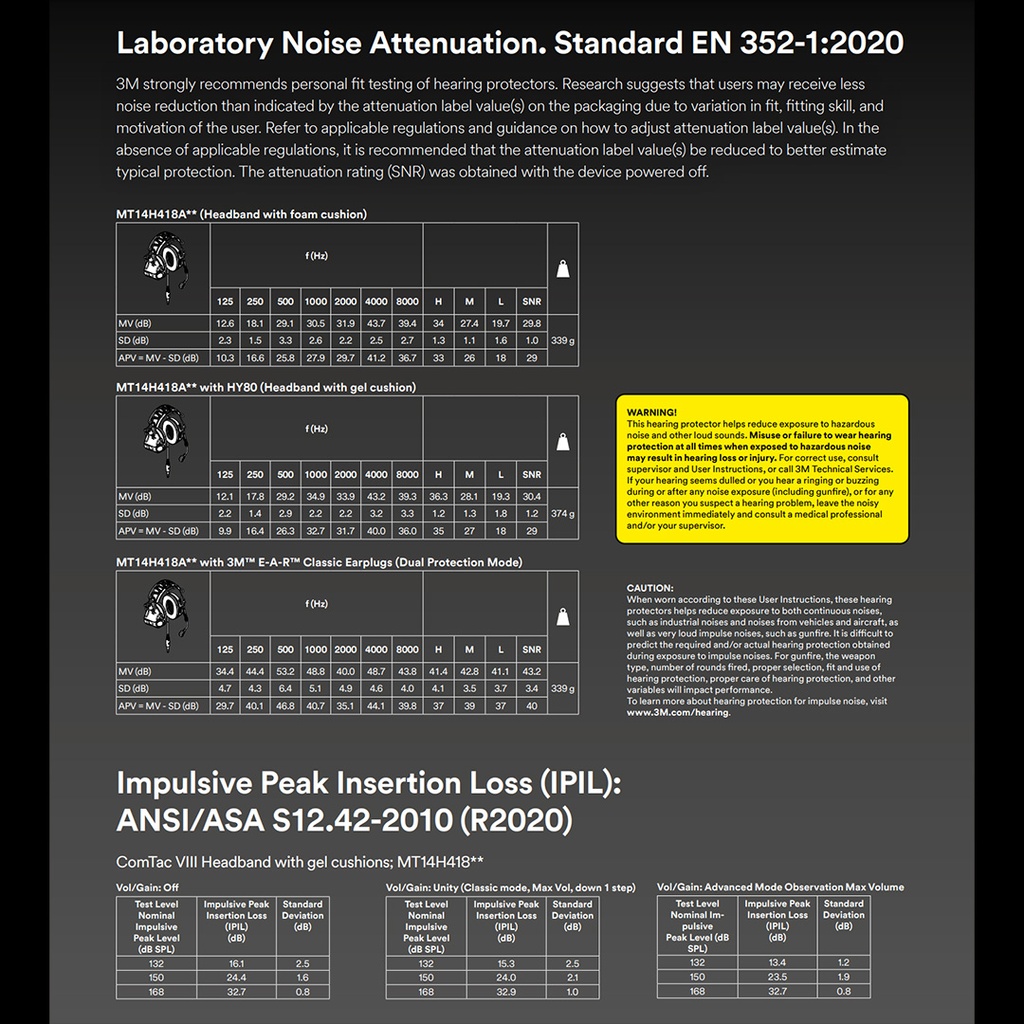

- SNR 29 dB
- No software loads or outside power required, complete self-contained headset with power fail safe
- ~ 50h runtime
SPECIAL FEATURES
- “Plug & play”, no start up time
- Tactile buttons allow easy use, even with gloves
- Voice guided configuration menu
- Automatic power off after two hours if no function is used
- Low battery warning
CONSTRUCTION
- Tested according to the applicable parts of military standards
- IP68 waterproof (up to 3 m depth for 30 min) & dust-proof
- Operational in temperatures from -40 to 55°C
NEW DESIGN
Entirely redesigned ComTac system provides a whole range of improvements like better ergonomics & headband, new earcups & microphone designs & a more reliable battery compartment. More info in charts or below.
STANDARDS & APPROVAL
- PPE Regulation 2016/425
- EMC Directive 2014/30/EU
- ROHS Directive 2011/65/EU
- MIL-STD-810G
- EMC-MIL-STD-461G
- 3M Svenska AB declares that the product is in compliance with Directive 2014/53/EU and other appropriate directives to fulfill the requirements for the CE marking.
MORE DETAILS
- Battery Type: 2x AAA
- Weight: 339 g w/ batteries
- Made in Sweden
- *NOTE: This ComTac VIII is only compatible with the System Control Unit (SCU-300) for radio communications.
FUNCTIONS
- Listening modes - controls ambient noise level via classic mode or MAP function
- Ear Plug Mode - maintain situational awareness with the use of passive earplugs
- Battery - selection of used battery
- Balance - controls volume balance between right & left ear
- Warning signals - low battery & auto power-off alerts
- Automatic power off - shuts down after 2 hours of no used function
COMTAC VIII DIFFERENCES COMPARED TO COMTAC VII
- No wireless functions
- Doesn’t feature NIB intercom
- Can’t be combined with TEP-300 for "Dual Hearing Protection" function (instead allows for "Ear Plug Mode")
- Can only use the SCU-300
- Features new "Soundscape" function
- Broader operational temperatures (-40 to 55°C instead of -20 to 55°C)
NEW FEATURES COMPARED TO COMTAC VI
- Improved sound localization, and speech intelligibility
- New ergonomic design: Integrates with weapon and protective systems and increases comfort for long term wear
- New headband design: Helps improve comfort when worn under a ballistic helmet
- Transition made easier: Simplified cable removal/resetting and redesigned arm guides that snap on/off (no tools required) for easy transition between helmet rails and headband
- New earcup design: Updated, modern style that achieves the highest noise attenuation in the ComTac range, and retains a slim profile to help achieve an unobstructed cheek-to-stock weld
- New microphone attachment: Designed to accommodate both left-and right handed shooters without the need to relocate the microphone to the opposite side
- New environmental mic design: New ear cup profile allows more space for an upgraded environmental mic and a more robust windscreen, resulting in improved Auditory Situational Awareness (ASA) and reduced wind noise
- New battery compartment: Redesigned, watertight battery compartment that doesn’t require a tool to change batteries, powered by 2x AAA batteries
- Dual Hearing Protection: Designed to enable use in combination with 3M™ PELTOR™ TEP-300 earplugs, or passive earplugs
IN THE BOX
- 1x ComTac VIII
- 1x User manual
- 2x AAA battery
